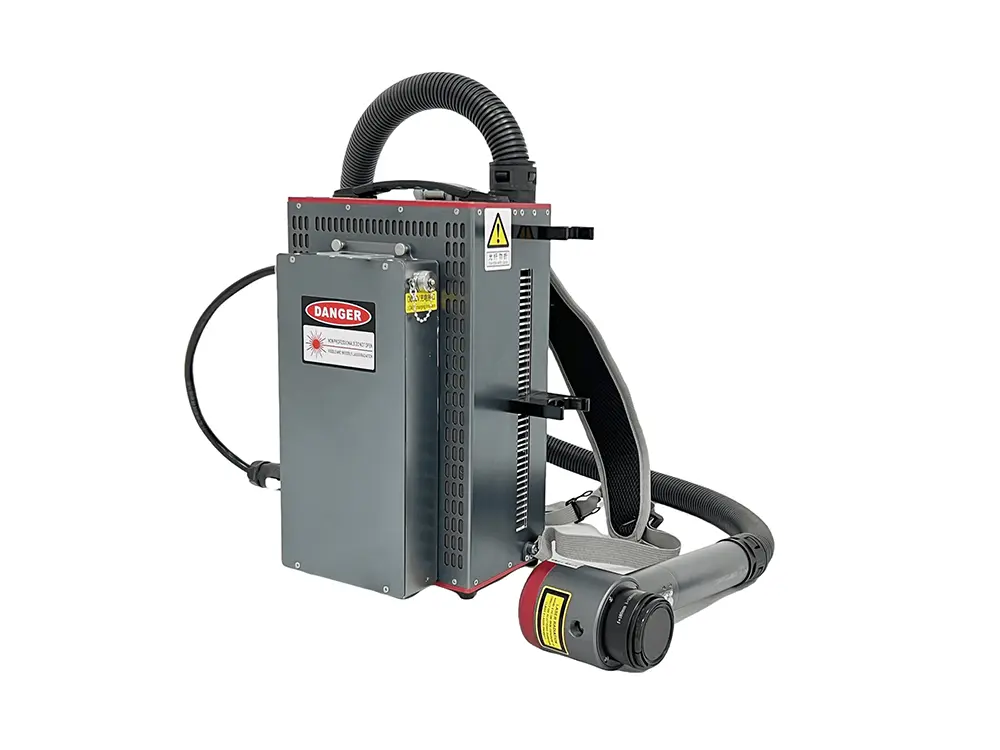

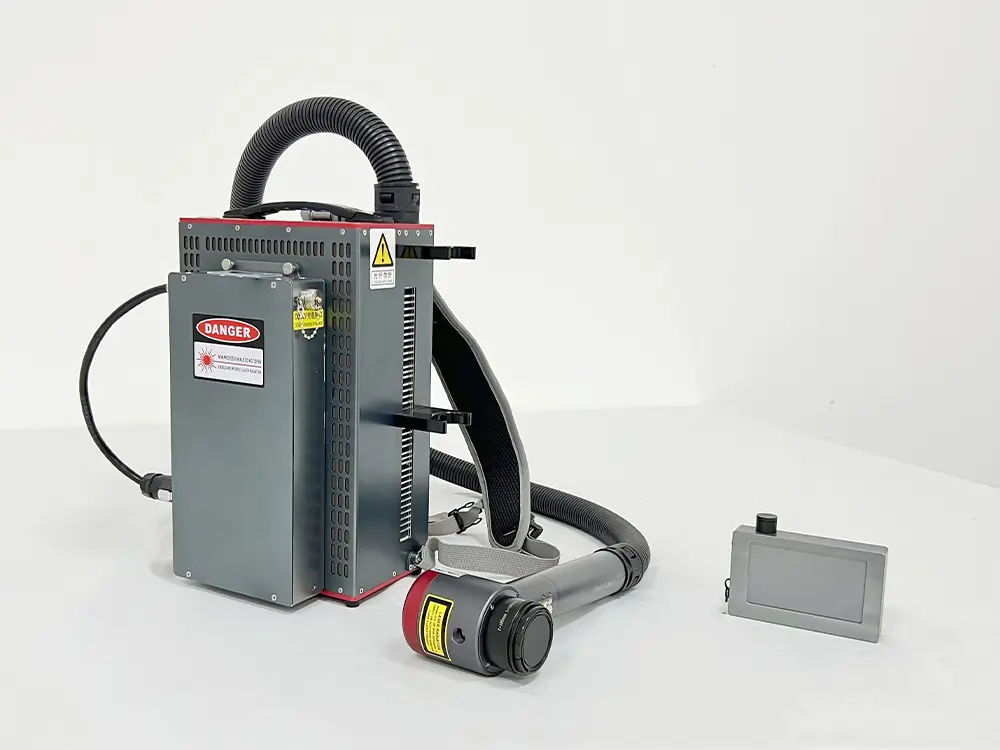

▍Backpack Pulse Laser Cleaning Machine Description
The backpack laser cleaning machine adopts a backpack design, which is small in size, light in weight and easy to carry. There are two working modes: rechargeable battery and external power supply. The rechargeable battery can work at full power for more than 1.5 hours. The control system and the handheld laser head are integrated into one design, which is easy to operate and comfortable to hold. It is a laser cleaning machine that is particularly suitable for outdoor operations.
The laser cleaning machine can clean and remove rust from various metal surfaces, including steel, aluminum alloy, copper, magnesium, zinc, stainless steel, etc. At the same time, it can also be used to clean and rust some more complex surfaces, such as pipes, wheels, bridges, building exterior walls, etc. In addition, the backpack laser cleaning machine can also be used to clean and rust some more delicate items, such as sculptures, cultural relics, ancient buildings, etc.
The backpack laser cleaning machine is a new type of cleaning equipment. It uses laser technology for cleaning and can be widely used in the following fields:
- Industrial Manufacturing: Ideal for metal surface cleaning, rust, oil, and paint removal in industries such as automotive, shipbuilding, aerospace, and machinery manufacturing.
- Cultural Heritage: Effective for cleaning and preserving relics like ancient buildings, stone carvings, and bronze artifacts.
- Eco-Friendly: Laser cleaning eliminates the need for chemical agents, reducing environmental impact and supporting sustainable cleaning practices.
▍Backpack Pulse Laser Cleaning Machine 100W-300W Parameters
| Specification | WTC-100W | WTC-200W | WTC-300W |
|---|---|---|---|
| Laser Operation Mode | Pulsed | Pulsed | Pulsed |
| Pulse Width | 150-190ns | 13-500ns | 13-500ns |
| Max Single Pulse Energy | 1.7mJ | 2mJ-5mJ | 5mJ-15mJ |
| Total Power Consumption | ≤600W | ≤800W | ≤1100W |
| Fiber Length | 1.5m | 1.5m | 1.5m |
| Cooling Method | Air Cooling | Air Cooling | Air Cooling |
| Scanning Range | 0-100mm | 0-145mm | 0-145mm |
| Main Unit Dimensions (L*W*H) | 213*168*339mm | 268*192*445mm | 268*192*445mm |
| Packed Dimensions (L*W*H) | 860*840*340mm | 860*840*340mm | 860*840*340mm |
| Main Unit Weight | 12Kg | 17Kg | 18.08Kg |
| Cleaning Head Weight | <0.75Kg | <0.75Kg | <0.75Kg |
| Field Lens Focal Length | Optional: 160mm / 210mm / 254mm / 330mm / 420mm | ||
| Operation Mode | Handheld | ||
| Control Method | Wireless Control Screen | ||
| Applications | Urban graffiti cleaning, weld seam cleaning, high-altitude operations, locations without power supply, and other confined spaces. | ||

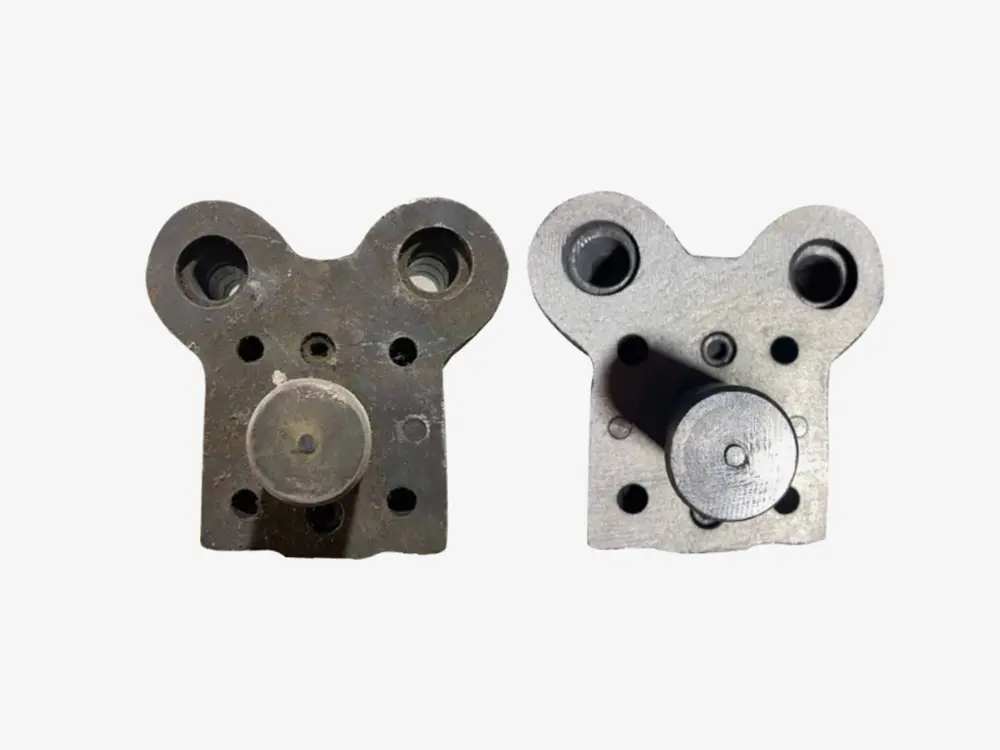

▍Backpack Pulse Laser Cleaning Machine Sample

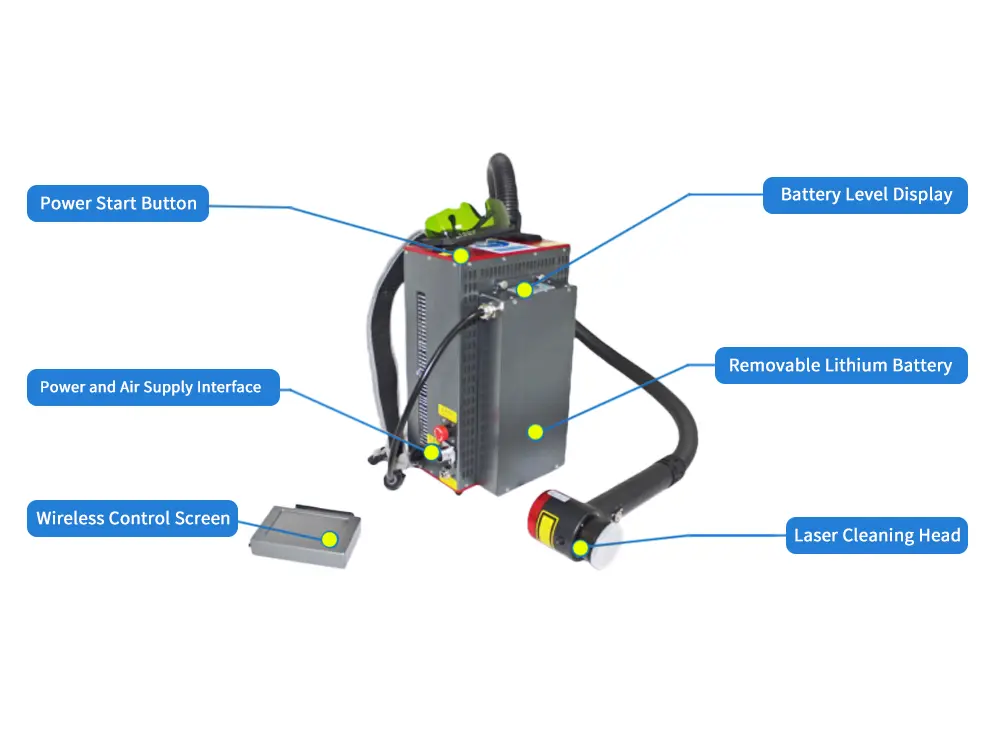

▍Backpack Pulse Laser Cleaning Machine Configuration
Pulse Laser Source
Delivers high precision and minimizes damage to the base material.
Ideal for delicate surfaces, including cultural relics and sensitive equipment.
Removable Lithium Battery
Provides power for operations in locations without a power supply.
Long-lasting and easily replaceable for extended cleaning tasks.

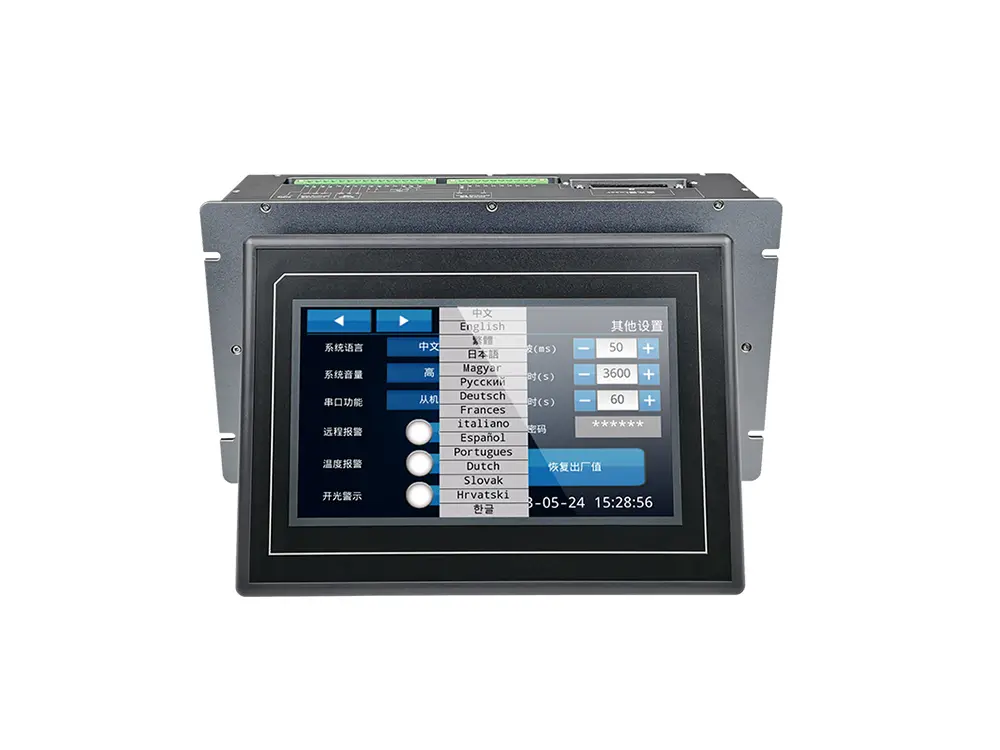

Wireless Control Sceen
User-friendly interface for adjusting settings remotely.
Displays operational status, including power levels and cleaning modes.
Laser Rust Removal Gun
Lightweight (<0.75kg), ergonomically designed for handheld operations.
Efficient and precise for removing rust, paint, grease, and other surface contaminants.
▍Backpack Pulse Laser Cleaning Machine Benefits
- Portability and Flexibility: Lightweight design with a compact backpack form factor allows easy transportation and operation in diverse environments. Suitable for confined spaces, high-altitude operations, and areas with limited access.
- Detachable Lithium Battery: Enables cordless operation, perfect for locations without a power supply or with limited accessibility. Long-lasting battery life ensures continuous work, and the detachable feature allows quick replacement.
- Versatile Applications: Highly effective for graffiti removal, weld seam cleaning, paint stripping, and rust removal. Ideal for industrial tasks like machinery maintenance, shipbuilding, and automotive repairs, as well as environmental cleaning and restoring cultural heritage.
- Ergonomic Cleaning Head: Weighing less than 0.75kg, the cleaning head reduces operator fatigue during extended use. Easy to handle and maneuver for precise cleaning tasks.
- Advanced Pulse Laser Technology: Provides non-damaging cleaning with high precision, preserving the base material.
- User-Friendly Controls: Wireless control screen for easy adjustment of cleaning parameters and monitoring of real-time status.
- Environmentally Friendly: Chemical-free cleaning method reduces environmental impact. Safe for operators and surroundings, meeting modern sustainability standards.
▍Backpack Pulse Laser Cleaning Machine FAQs
Q: What are the key features of this laser cleaning machine?
This machine features a compact backpack design, detachable lithium battery, lightweight cleaning head (<0.75kg), and wireless control for portable and flexible operation.
Q: What types of surfaces can it clean?
It is highly effective on metal, stone, concrete, and painted surfaces, ideal for tasks such as rust removal, paint stripping, graffiti cleaning, and weld seam cleaning.
Q: Is it suitable for outdoor or remote locations?
Absolutely. The lithium battery enables cordless operation, making it perfect for outdoor and remote areas without access to power supply.
Q: How long does the lithium battery last? Can I replace the battery easily?
The detachable lithium battery provides extended operational time, ensuring uninterrupted cleaning for several hours, depending on the power settings and application intensity. The battery is designed for quick and easy replacement, enabling continuous operation without delays.
