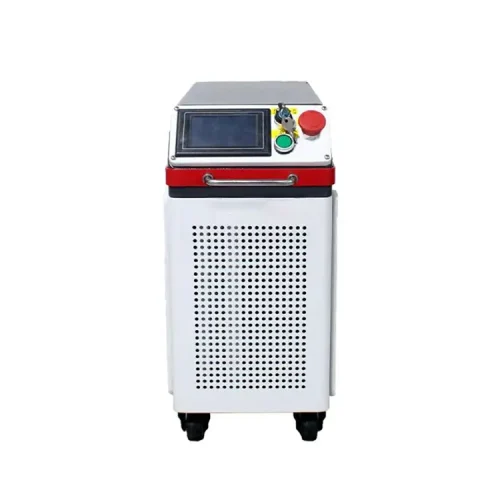

▍Laser Rust Cleaner Description
Compact, powerful, and ultra-portable, WINTEK’s laser rust cleaner is engineered for efficiency and convenience. Its retractable cleaning head fits neatly inside the cabinet, saving space and making transport and storage simple. The lightweight design ensures you can move it easily between worksites, while its durable construction guarantees long-lasting performance even under frequent industrial use.
Achieve precise and fast cleaning on a variety of surfaces. This laser rust cleaner effectively removes rust, oil stains, paint, coatings, and other surface contaminants without damaging the underlying material. It is ideal for automotive repair, mold maintenance, industrial equipment cleaning, stone restoration, metal parts refurbishment, and other maintenance tasks. Its adaptability makes it suitable for both small precision work and larger-scale industrial applications.
Designed for professional results with minimal effort, WINTEK’s laser rust cleaner combines high cleaning efficiency with user-friendly operation. Intuitive controls let operators start cleaning quickly, while the portable design allows access to hard-to-reach areas. Whether used for regular industrial maintenance or delicate surface treatment, it delivers consistent, high-quality results, reducing labor time and improving overall productivity.
▍200W Laser Rust Cleaner Parameters
| Model | WTC-200W |
| Laser Working Mode | Pulse |
| Pulse Width | 2-500ns Adjustable |
| Maximum Pulse Energy | 5mJ |
| Power Adjustment Range (%) | 0-100( Gradient Adjustable) |
| Frequency Adjustment Range (kHz) | 1-4000kHz( Gradient Adjustable) |
| Fiber Cable Length | 5m |
| Cooling Method | Air Cooling |

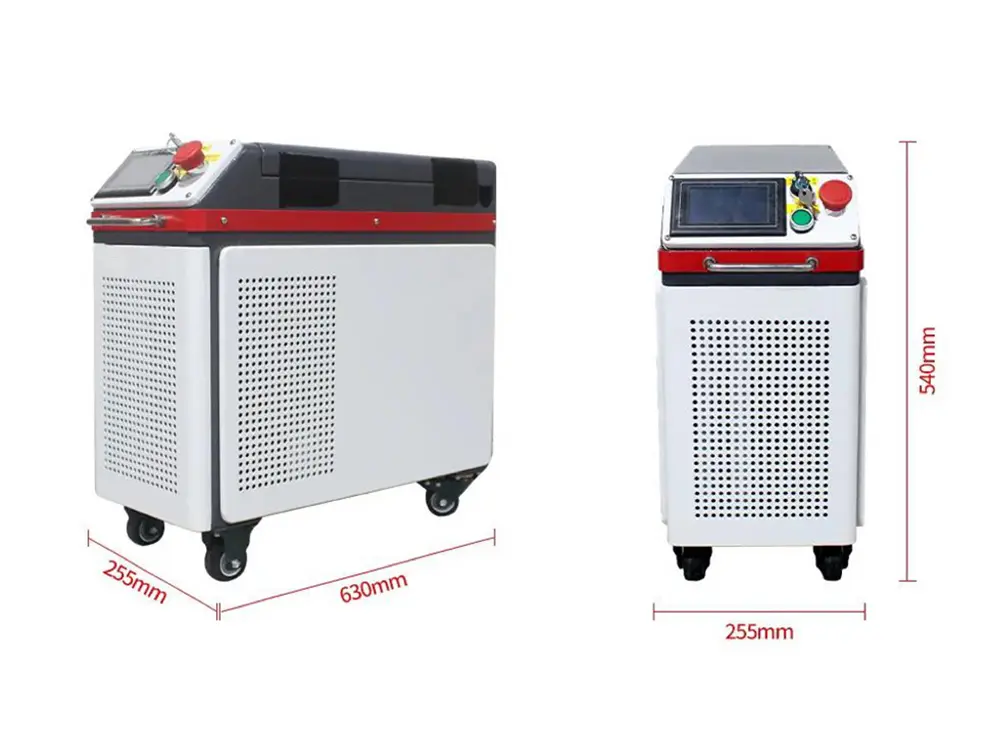

| Machine Dimensions (Length, width and height) | about 630mm*255mm*540mm |
| Machine Weight | about 38KG |
| Pulse Laser Cleaning Head Parameters | |
| Cleaning Head Weight | ＜0.75Kg |
| Scanning Frequency | 1-4000Hz |
| Maximum Scan Line Speed | About 30m/s |
| Scanning Width | 0-145mm(Continuously adjustable) |
| Maximum Scaning Speed | 20000mm/s |
| Field Lens Focal Length | 210mm |
▍Laser Rust Cleaner Sample
▍Laser Rust Cleaner Configuration

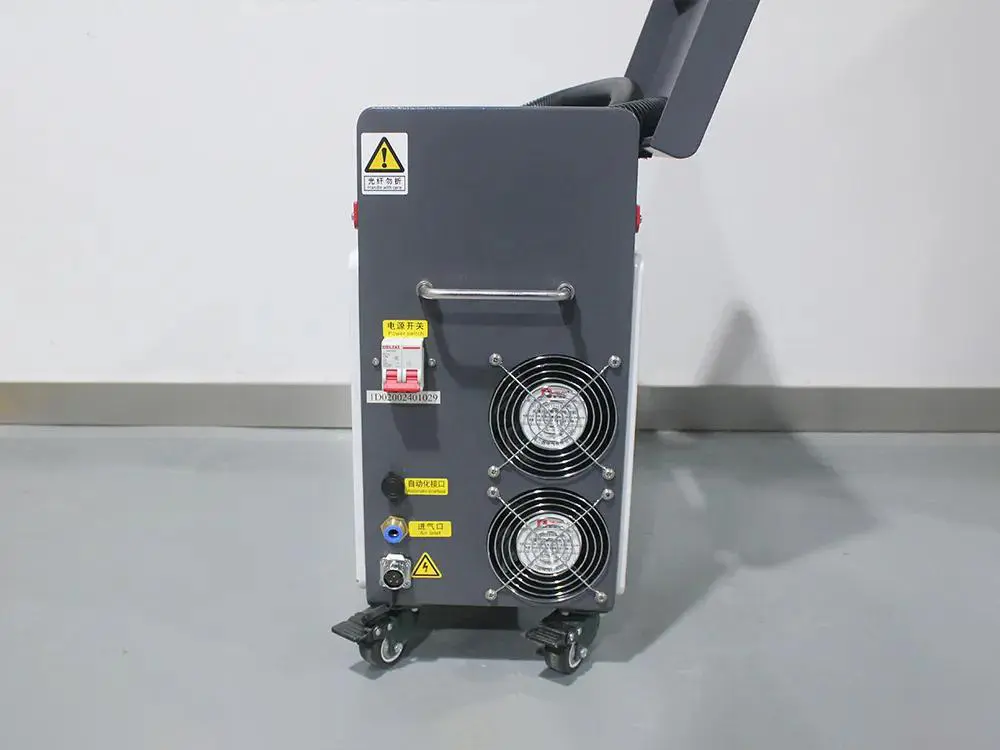

Protective Gas Inlet
The protective gas inlet is designed to supply stable airflow during the cleaning process, helping to remove debris and maintain a clear working area. This feature improves cleaning performance while protecting the optical components from contamination. With a reliable airflow control structure and practical design, it supports efficient operation and helps reduce maintenance time and operating costs.

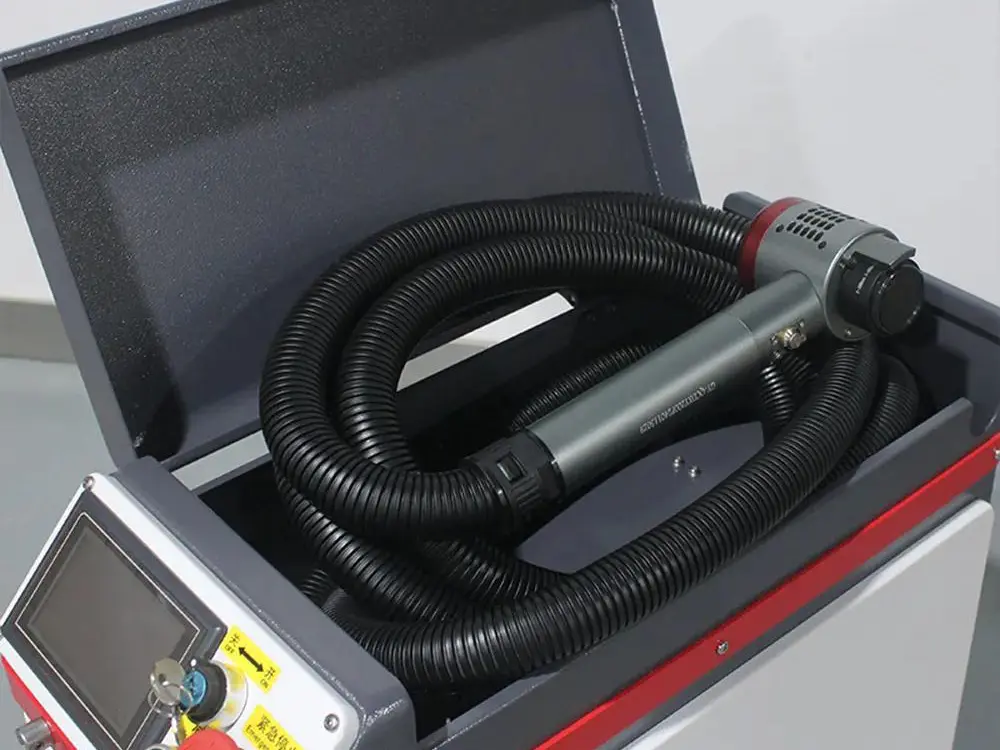

Laser Rust Cleaner Storage Box
The storage box is designed to safely hold the laser cleaning head, offering reliable protection during storage and transportation. It helps keep the equipment organized while preventing dust, impact, and potential damage. The compact design also makes it convenient to carry and move the machine between different working environments.
Large-Screen Monitor
The laser rust cleaner is equipped with an intuitive large-screen display that offers a clear and easy-to-use interface. Users can conveniently set cleaning parameters, monitor operating status, and view real-time system information through the screen. The simple control layout allows both beginners and experienced operators to use the machine efficiently and comfortably.
Laser Cleaning Head
The laser cleaning head features a lightweight and ergonomic design for flexible and comfortable operation during long working periods. It delivers a maximum single pulse energy of 5–15 mJ, ensuring efficient removal of rust, paint, and other contaminants while protecting the base material. The system supports 9 scanning modes to meet different cleaning requirements and provides 15 switchable languages on the interface, making operation convenient for users worldwide. Built with durable optical components, the cleaning head performs reliably even in demanding industrial environments.
▍Laser Rust Cleaner Benefits
Efficient Rust and Contaminant Removal: The pulsed laser cleaning system quickly removes rust, paint, oil, oxide layers, and other surface contaminants with high precision, significantly improving cleaning efficiency compared with traditional methods.
Non-Contact and Damage-Free Cleaning: Laser cleaning is a non-contact process that does not cause mechanical wear or chemical corrosion. It effectively protects the base material while delivering precise and controlled cleaning results.
Low Maintenance and Operating Costs: Unlike sandblasting or chemical cleaning, laser cleaning requires no consumables such as abrasives or chemicals. This greatly reduces long-term operating costs and minimizes equipment maintenance.
Eco-Friendly and Safe: Laser cleaning produces minimal waste and eliminates the need for harsh chemicals, making it a more environmentally friendly and safer solution for industrial surface treatment.
Easy Operation and Flexible Use: With a user-friendly control system, multiple scanning modes, and a lightweight handheld cleaning head, operators can quickly adjust parameters and handle different cleaning tasks with ease.
Wide Range of Applications: Laser rust cleaners are suitable for many industries, including automotive repair, mold maintenance, metal processing, equipment restoration, and cultural relic conservation.
▍Laser Rust Cleaner FAQs
Q: What materials can a laser rust cleaner work on?
A laser rust cleaner is mainly used for metal surfaces such as steel, stainless steel, aluminum, iron, and copper. It can effectively remove rust, paint, oxide layers, oil stains, and other contaminants without damaging the base material.
Q: Will laser cleaning damage the material surface?
No. Laser cleaning is a non-contact process. By adjusting the laser parameters, the machine removes surface contaminants precisely while protecting the underlying material.
Q: What industries commonly use laser rust cleaners?
Laser rust cleaners are widely used in industries such as automotive repair, metal fabrication, mold maintenance, machinery manufacturing, and shipbuilding. They are also suitable for equipment maintenance and restoration work, where rust, paint, and oxide layers need to be removed efficiently while protecting the base material.
Q: Is the laser rust cleaner easy to operate?
Yes. The machine features an intuitive control interface with multiple language options and preset cleaning modes. Even beginners can quickly learn how to operate the system after basic training, and the lightweight ergonomic design makes handling and maneuvering during cleaning simple and comfortable.
Q: Does the machine require consumables?
No. Unlike sandblasting or chemical cleaning, laser cleaning does not require abrasives or chemicals. This reduces long-term operating costs and maintenance requirements.
Q: What power options are available for laser rust cleaners?
Laser rust cleaners are typically available in different power levels such as 100W, 200W, 300W, and higher, allowing users to choose the model based on their cleaning needs.
