Multifunctional Large Tube Sheet Composite Laser Cutting Machine 12KW-40KW

The multifunctional laser cutting machine designed to handle profiles, plates, and tubes, making it an ideal solution for steel structure construction, bridge engineering, rail transit, and shipbuilding industries. It integrates multiple functions including cutting, beveling, drilling, slotting, marking, and line scribing, providing a one-stop solution for diverse steel fabrication needs. The machine efficiently processes plates from 20–100 mm and is equipped with an intelligent control system that ensures high-precision cutting of complex shapes, significantly boosting overall production efficiency.

Brand: WINTEK Laser
Model: WT-1500H
Category: Fiber Laser Cutting Machine
Laser power: 12000W-40000W
Suitable Material: Stainless Steel, Carbon Steel or other Metal Materials.

Send Inquiry

Description

Fiber Laser Cutting Video On Youtube

▍Tube Sheet Laser Cutting Machine Description

This dual-purpose tube sheet laser cutting machine is engineered to handle both flat metal sheets and a wide variety of tubes, including round, square, and rectangular profiles. It can cut intersecting-line holes of different diameters on main pipes, perform angled end cuts on round tubes, and create complex shapes on square tubes. It also supports tube severing and variable-angle bevel cutting, allowing users to complete specialized processes without purchasing separate plate-cutting or tube-cutting equipment.

The machine offers excellent material compatibility, making it suitable for stainless steel, carbon steel, alloy steel, aluminum, copper, and other metals. Even hard or brittle alloys can be processed with stable, high-quality results. This versatility makes the equipment ideal for industries such as metal fabrication, automotive parts, medical instruments, etc.

Its software and operation system are highly adaptable, featuring a user-friendly control interface compatible with design software such as AutoCAD and CorelDRAW. Cutting paths can be edited at any time, and the intuitive parameter interface allows users to apply preset processing settings for different tube types with one click. Parameters can be adjusted in real time, enabling rapid production of new parts without the need for additional molds.

Comprehensive technical support is available throughout the entire service cycle, including pre-sales consultation, on-site commissioning, and after-sales maintenance. Our team ensures that users receive timely solutions to any operational or technical issues, helping them achieve smooth and efficient production with their equipment.

▍Tube Sheet Laser Cutting Machine 12KW-40KW Technical Parameters

Model	WT-1500H
Power	12KW-40KW
Maximum Profile Length	12300mm
Profile Processing Range	200100mm-1500500mm
Sheet Processing Range	320013000mm (Straight Cutting) 250012300mm (Bevel Cutting)
Tube Processing Range	Φ15-1200mm / Φ15-600mm
Positioning Accuracy	0.1mm
Max. Running Speed	80m/min
Max. Acceleration	0.8G

▍Tube Sheet Laser Cutting Machine Sample

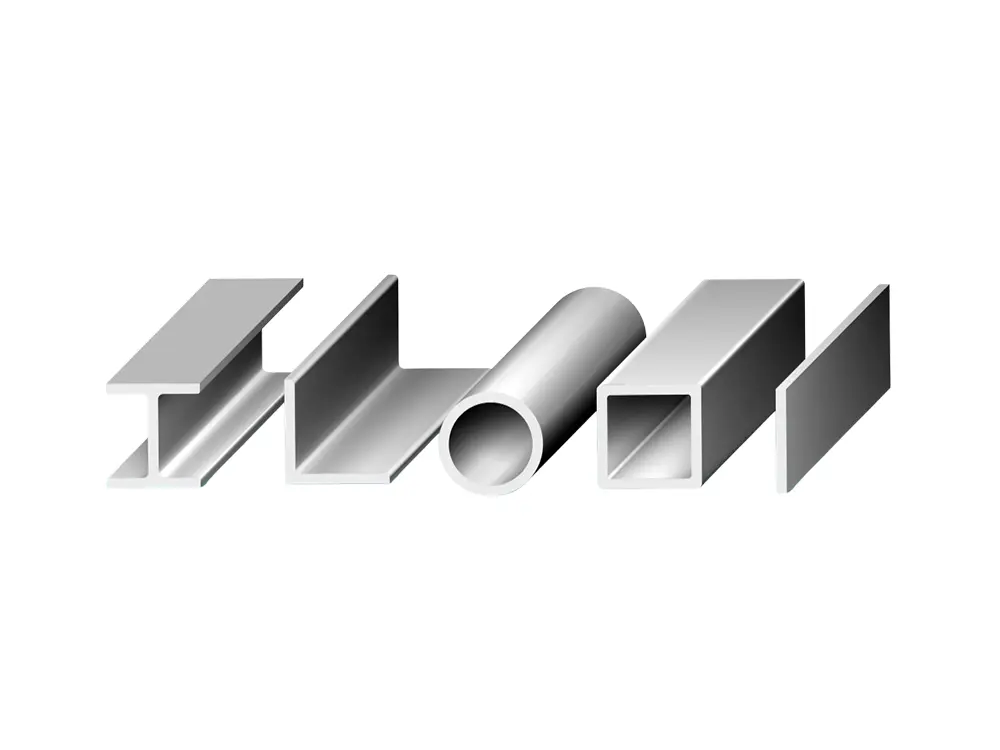

wintek 3015 fiber laser cutting machine sample

wintek 3mm sheet metal laser cutting machine sample

tube fiber laser cutting machines sample

▍Tube Sheet Laser Cutting Machine Configuration

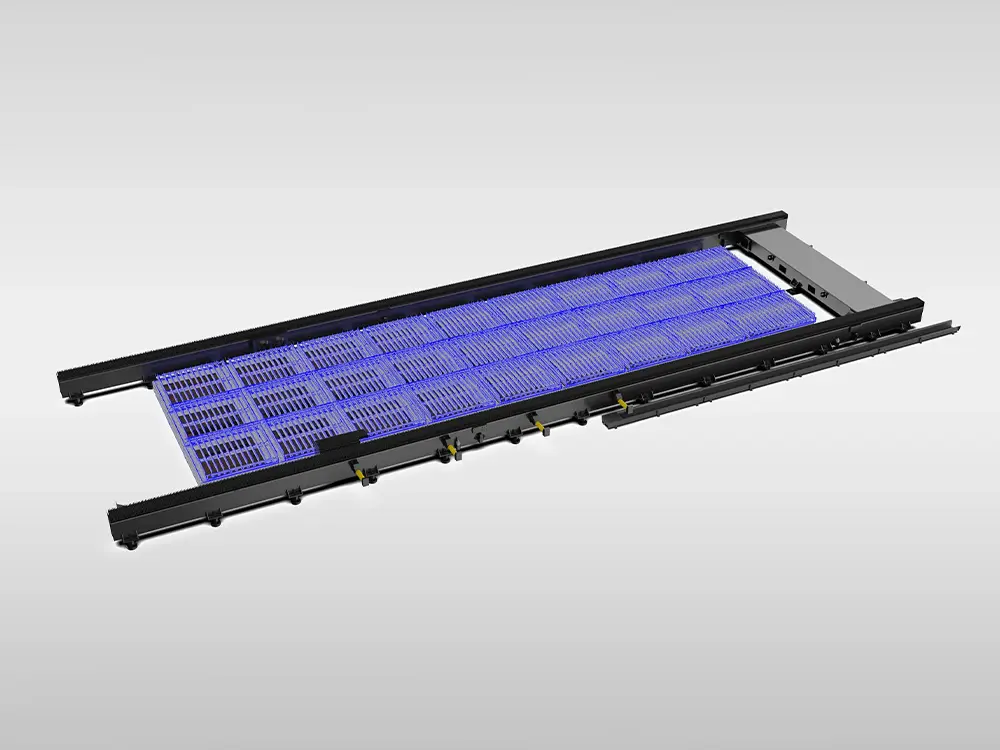

Customizable Standardized Bed

The modular bed design allows easy adaptation to different project requirements, providing flexibility for various workpiece sizes while maintaining stable and precise cutting performance.

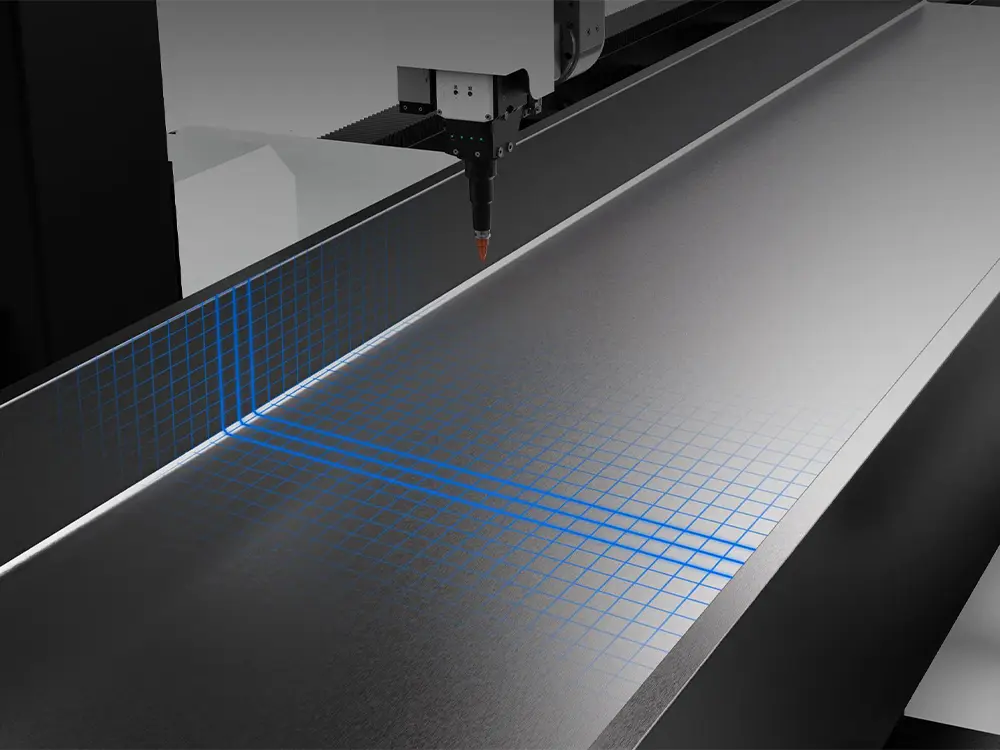

Smart Vision & Auto Compensation

Equipped with real-time scanning, the system automatically corrects misalignment to maintain accurate and consistent cuts.

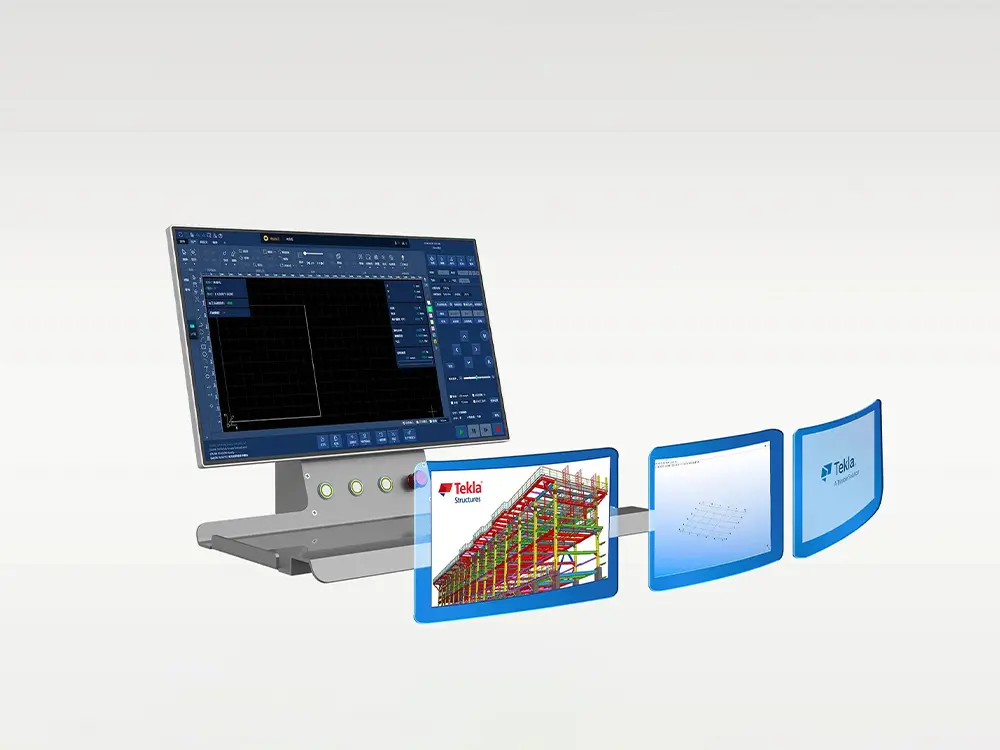

Tekla Integration for Smart Nesting

Easily import Tekla drawings for optimized nesting, maximizing material use and minimizing waste.

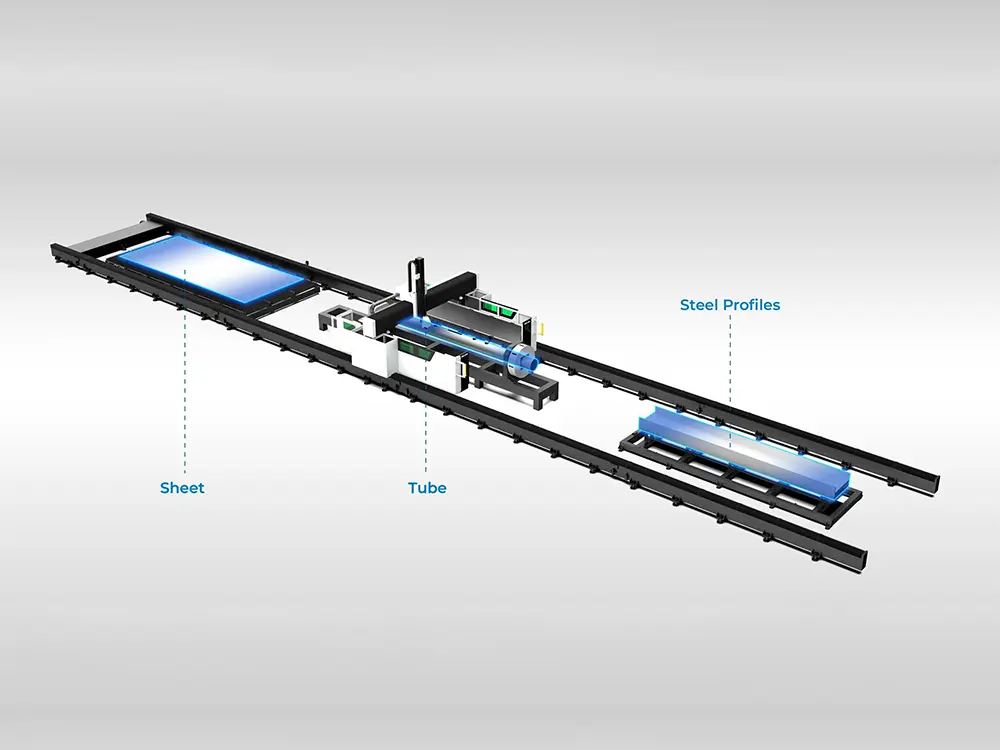

Continuous & Efficient Processing

Enables multi-material loading and nonstop operation for higher productivity and reduced downtime.

Tube Sheet Laser Cutting Machine - Other Core Components

12KW MAX laser source of fiber laser cutter

Fiber Laser Source

BT06K head of fiber laser cutting machine

Cutting Head

Wide Material Compatibility

Hiwin rails of fiber laser cutting machine

Taiwan Hiwin Rails & YYC Gears

▍Tube Sheet Laser Cutting Machine Benefits

1. High Structural Stability for Large Workpieces
The machine features a high-strength welded bed and heavy-duty gantry structure, offering exceptional rigidity and torsion resistance. Even during long hours of high-speed operation, it maintains precise cutting accuracy. It reliably supports large components and thick profiles, meeting the demands of continuous heavy-duty processing.

2. Integrated Workflow to Minimize Intermediate Steps
By combining multiple operations in a single machine, it can handle positioning, clamping, cutting, and edge trimming all in one setup. This integration reduces workpiece handling and repeated fixture changes, saving space and significantly shortening production cycles compared to traditional multi-machine setups.

3. Precision Drive System for Consistent Output
Equipped with high-precision servo motors, imported reduction gears, and linear guides, the system ensures smooth operation and high repeatability. Whether for batch production or continuous operation, cutting paths remain consistent, reducing rework and helping companies maintain high-quality standards.

4. Energy-Efficient Laser Source to Lower Operating Costs
The machine uses a fiber laser with high electro-optical conversion efficiency, consuming less power while generating minimal heat. Compared to traditional lasers of similar power, this design reduces energy costs, improves stability, and decreases maintenance frequency, lowering overall operational expenses.

5. Comprehensive Safety Design to Reduce Operational Risks
The system includes multiple safety features such as collision protection, emergency stop mechanisms, and intelligent monitoring modules. Real-time status monitoring automatically halts operations during abnormal conditions, safeguarding operators and preventing damage to workpieces or equipment.
