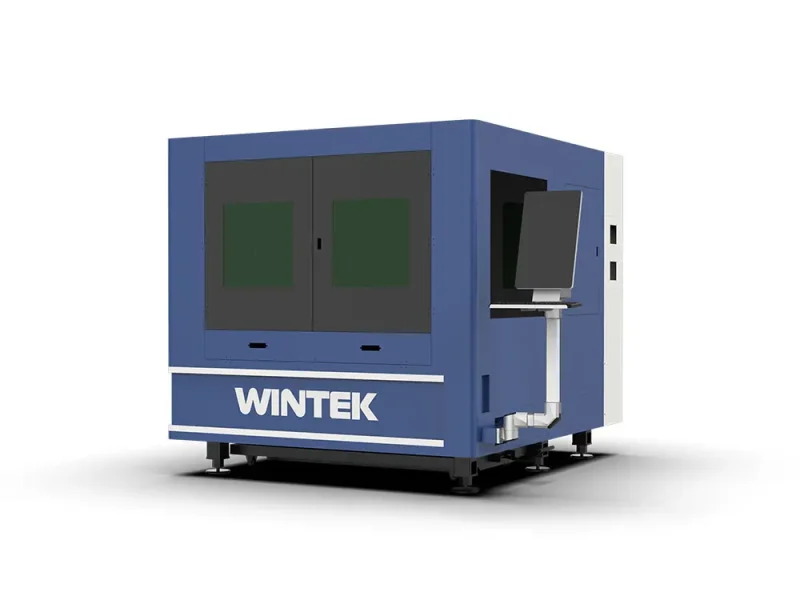

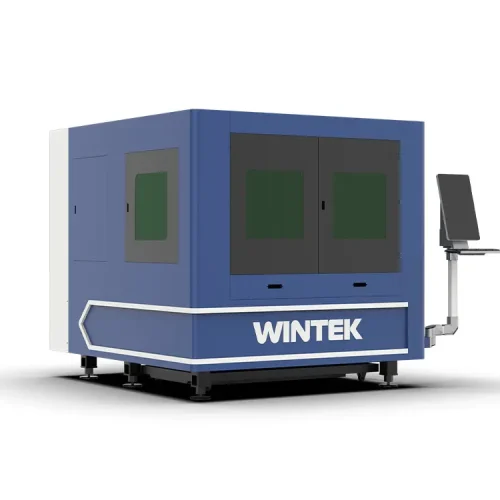

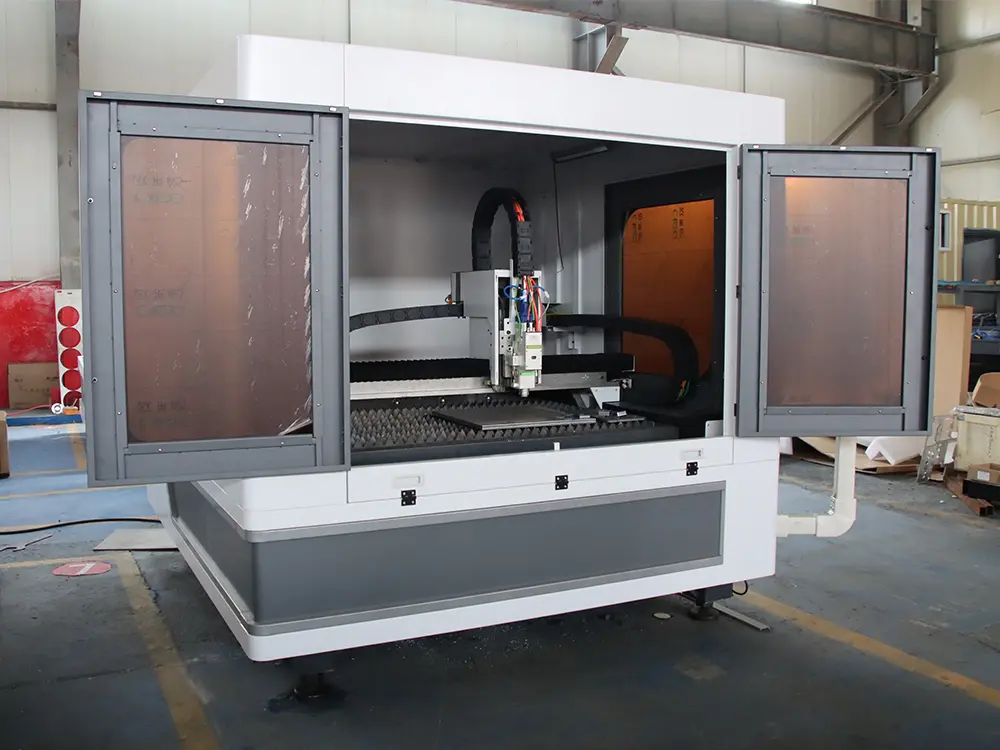

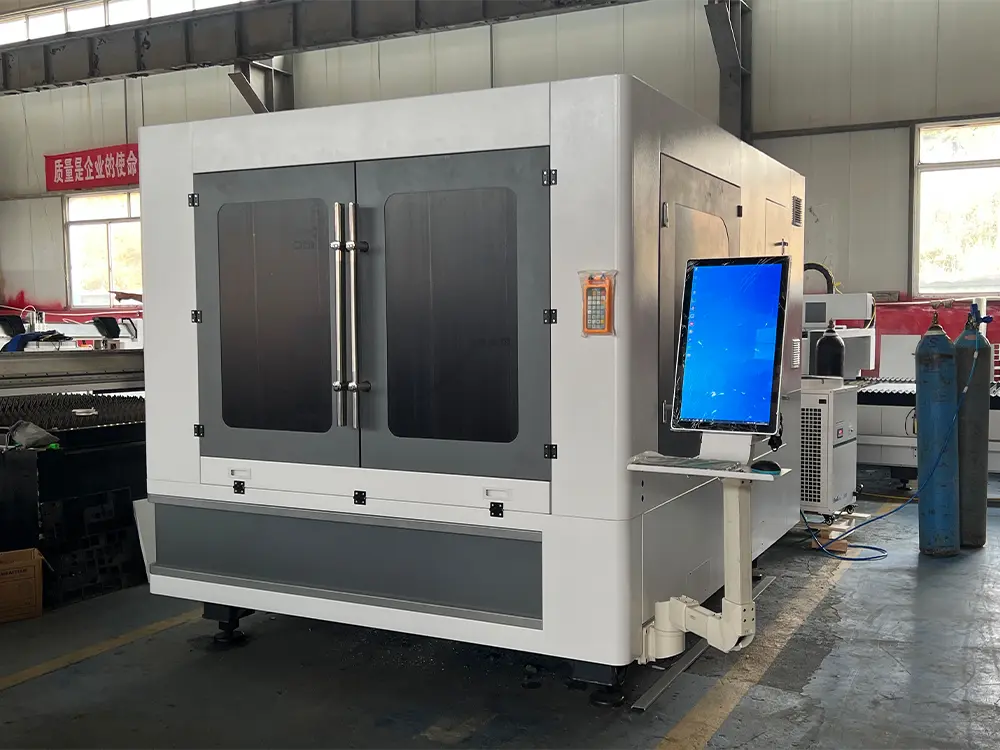

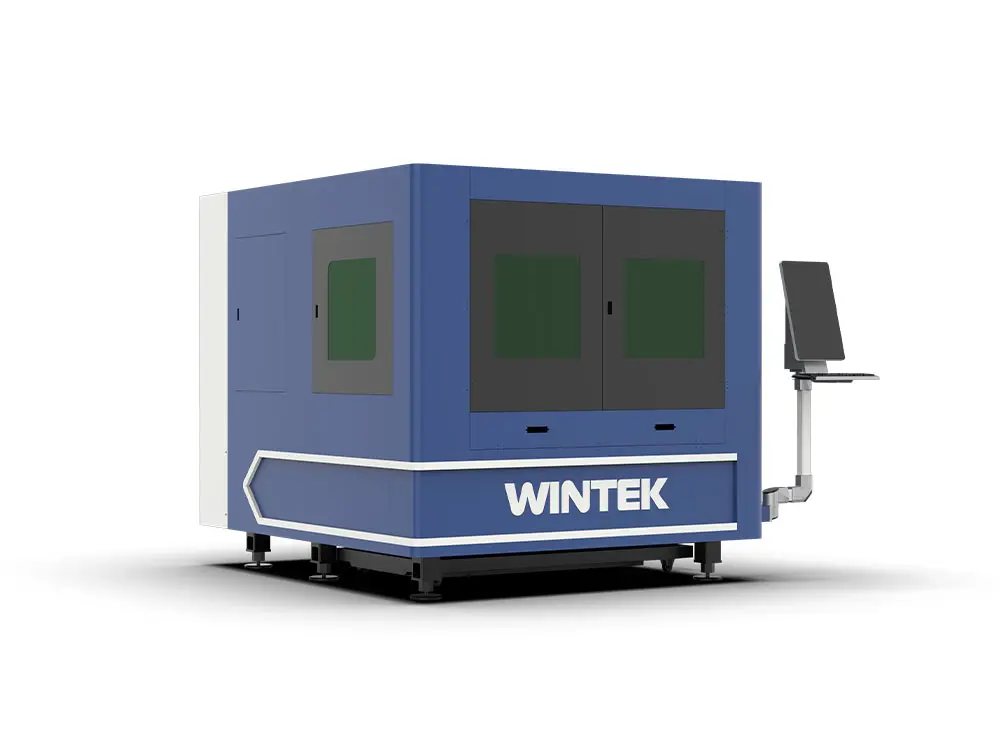

Enclosed 1390 Fiber Laser Cutting Machine for Gold Jewelry Metal

Product Description

WINTEK 1390P offers fast cutting speed, high precision and low maintenance.

The 1390P has a small footprint. The machine is easy to install even in a smaller workshop while still having all the features of a larger machine. The compact structure and efficient cutting performance make it particularly suitable for small and medium-sized factories or processing centers to meet diverse production needs.

1390 laser cutting machine is delivered completely, including a computer-controlled cooler, exhaust fan, radio remote control, very complete packaging and a complete starter box with consumables.

Additionally, it serves as an excellent choice for the jewelry industry. Since brass, copper and aluminum are highly reflective materials with high light reflectivity, the device can be equipped with an anti-reflection laser.

Sample Show

fiber laser cutting machine metal sample

high precision fiber laser cutting machine sample

sheet metal laser cutting machine sample

Fiber Laser Cutting Video On Youtube

Technical Parameters

Model	WT3030P	WT6060P	WT6090P	WT1390P
Working Area	300*300mm	600*600mm	600*900mm	1300*900mm
Worktable Bearing Capacity	500kg	800kg	800kg	1000kg
Positioning Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Repeat Positioning Accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Max. Acceleration	0.8G-1.5G	0.8G-1.5G	0.8G-1.5G	0.8G-1.5G
Laser Power	1000W&1500W&2000W&3000W&6000W
Laser Generator	MAX / Raycus / IPG / Reci, etc
Machine Bed	Stable welding bed	Stable welding bed	Stable welding bed	Stable welding bed
Running Speed	80-140m/min	80-140m/min	80-140m/min	80-140m/min
Application Industry	Jewelry making, precision components, decoration, sheet metal fabrication, molds, hardware, etc.

Details Introduction

Stable Working Table

The sliding table with drawer can better position and clean the material. The mounting holes and contact surfaces of the parts on the bed are of very high precision, ensuring the precise docking and stable operation of the parts. The bed is equipped with a shock-absorbing support structure to effectively reduce vibration impact on cutting quality.

2000W MAX laser source of fiber laser cutter

Stable Laser Source

The fiber laser is small in size and light in weight, easy to integrate, and suitable for the needs of compact cutting machines. With a simple and stable structure, the fiber laser requires minimal maintenance, effectively lowering operating costs.

Raytools BM06K head of fiber laser cutting machine

Intelligent Laser Cutting Head

The new optical path design and optimized optical lens processing make installation easy, debugging simple, excellent performance, double dustproof and stable cutting. Perforation detection and process monitoring boost efficiency and meet high-power air and nitrogen cutting requirements.

Shimpo reducer of fiber laser cutting machine

Japan Shimpo Reducer

Shimpo reducers are renowned for their high efficiency, durability, and compact design. Featuring precision-engineered gears, they deliver smooth and reliable power transmission with minimal noise and vibration. Their robust construction ensures long service life and excellent load capacity.

Laser Cutting Control System

The Fuscut control system and software provide precise, efficient, and user-friendly solutions, ensuring high-speed, stable operation and enhanced cutting accuracy. Its intuitive interface simplifies operation and supports multi-language options.

2000W water chiller of fiber laser cutter

Industry Water Chiller

High precision temperature control function. Temperature control accuracy can reach ±1℃. Equipped with water pressure gauges, drain outlet with valve and universal wheels. Water pressure gauges monitor the discharge pressure, while universal wheels make it easy to move the chiller.

Fuji servo motor of fiber laser cutting machine

Japan Servo Motor & Driver

Japan servo motors deliver high precision, reliability, and energy efficiency, making them ideal for a wide range of applications. With advanced control technology, they ensure smooth and accurate motion, enhancing operational stability. These motors require minimal maintenance and provide long-lasting performance.
