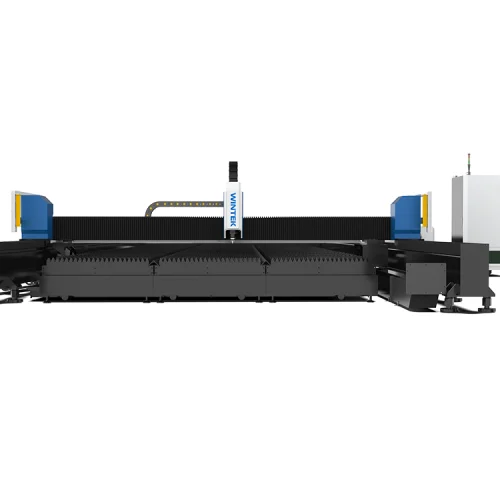

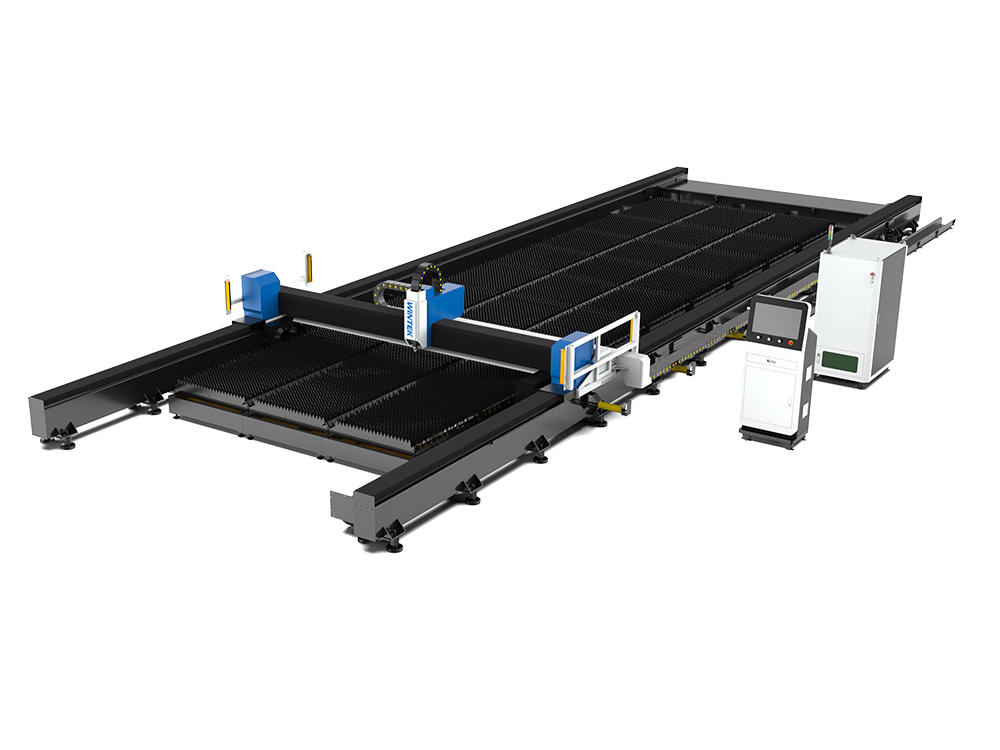

The WT14025A Laser Cutting Machine features a robust ground rail structure, ensuring smooth and precise cutting performance. It delivers high-precision, high-efficiency cutting for both large sheet materials and thick metal plates. Advanced laser technology provides clean, smooth edges with minimal heat-affected zones, and the machine supports multiple power options to meet diverse production requirements. This machine is user-friendly and highly reliable, making it suitable for industries such as automotive manufacturing, metal fabrication, shipbuilding, and construction. Combining stability, speed, and precision, the ground rail laser cutting machine is an ideal solution for businesses aiming to improve production efficiency and maintain high-quality cutting results.

Features of ground rail laser cutting machine:

1. Large Processing Area: Customizable ultra-large processing dimensions are available, with lengths up to 12–30 meters or longer and widths of 3.5–5 meters, meeting the demands of shipbuilding and large steel structure fabrication.

2. Easy Material Handling: The oversized worktable can accommodate a single large sheet or two 1.2-meter-wide sheets, enabling high-precision batch processing. Narrow kerf and common-edge cutting enhance material utilization and reduce waste. The bed design also allows the machine to be shipped via container.

3. High Load Capacity: The ground rail bed design provides strong table support, capable of handling heavy, large workpieces. It can process thick plates and large sheets, supporting continuous batch cutting of 20mm+ medium-thick plates, with some models capable of cutting up to 70mm.

4. Stable Bed Structure: The bed is built with an integral welded design and undergoes strict annealing, rough machining, secondary vibration aging, and precision machining processes. This ensures high reliability and stability, minimizing deformation risks under high-power operation and supporting ultra-high power applications up to 30KW.

▍Ground Rail Laser Cutting Machine Technical Parameters

Model	WT2500-14	WT2500-22	WT3200-14	WT3200-22	WT4000-14	WT4000-22
Cutting Size	2550mm*14500mm	2550mm*22500mm	3250mm*14500mm	3250mm*22500mm	4050mm*14500mm	4050mm*22500mm
Max. Running Speed	80m/min	80m/min	80m/min	80m/min	80m/min	80m/min
Positioning Accuracy	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Repositioning Accuracy	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm
Max. Acceleration	0.8G	0.8G	0.8G	0.8G	0.8G	0.8G
Table Load Bearing	17.5T	27.5T	19T	30T	24T	38T
Dimensions	18800x4700x2200mm	27800x4700x2200mm	18800x5500x2200mm	27800x5500x2200mm	18800x6300x2200mm	27800x6300x2200mm
Model Support Power	6-60kw	6-60kw	6-60kw	6-60kw	6-60kw	6-60kw

▍Ground Rail Laser Cutting Machine Sample

▍Ground Rail Laser Cutting Machine Configuration

Segmented Modular Workable

The bed and workable are designed separately, facilitating convenient maintenance and assembly while ensuring high dynamic performance and machine service life.

Raycus Laser Source

Fiber Laser adopts water cooling, modular design, compact structure, highly integrated system, maintenance-free and high reliability. The laser power is continuously adjustable, with high electro-optical conversion efficiency, high beam quality, and high laser stability.

Intelligent Laser Cutting Head

-Highest cutting speeds.
-Excellent quality of the cut edges.
-Intelligent sensor technology for stable processes.

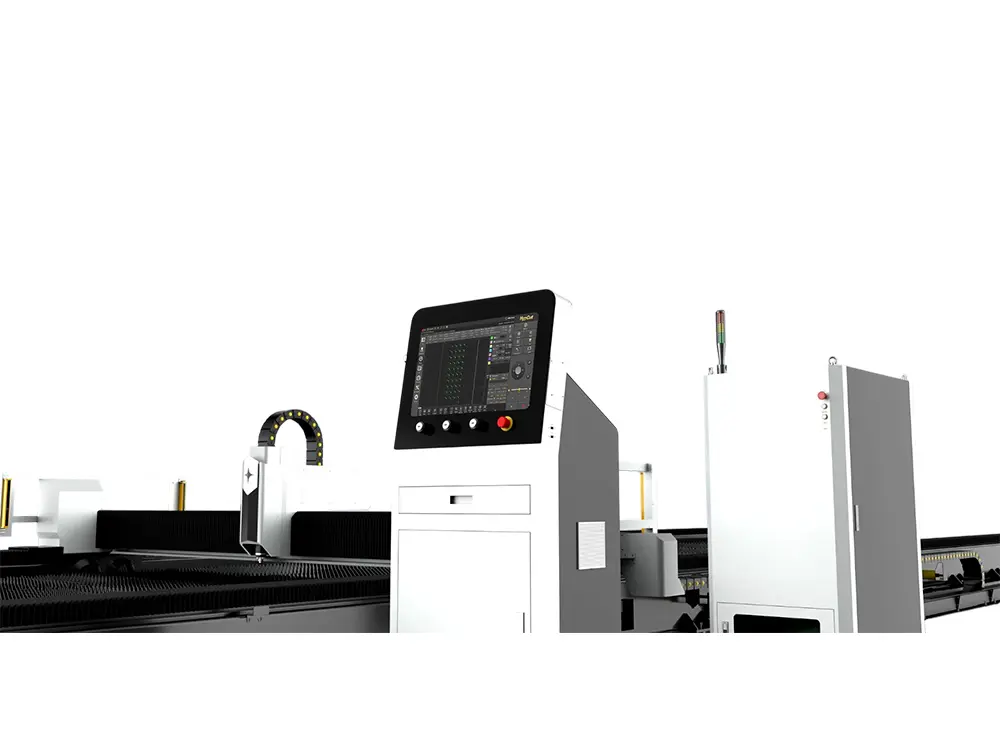

Laser Cutting Control System

High-end intelligent controller tailored for high-power fiber lasers, offering plug-and-play usability, quick installation, and precise adjustment. It delivers comprehensive solution functions and supports customization, automation, and digital integration for diverse industrial applications.

1. Extra-Large Format Customization

The modular ground rail bed adopts a segmented design, allowing different rail units to be combined according to processing requirements. Cutting length can be extended to 12m–30m or even longer, with widths up to 3.5m–5m. This makes it ideal for oversized components such as ship decks, large steel beams, and construction machinery booms—without the need for “cut-and-weld” splicing, thus eliminating joint errors.

2. High Load Capacity & Anti-Deformation

Constructed with high-strength welded steel and stress-relief treatment, the ground rail bed offers superior load-bearing capability compared to standard laser cutters. It can stably support heavy workpieces weighing hundreds of kilograms to several tons (eg: 20mm–70mm thick carbon steel or stainless steel plates). Even during long-term operation, the machine frame resists deformation, ensuring consistent cutting precision.

3. High-Precision Transmission

The gantry-to-rail connection adopts a multi-slider design (eg: 3+1 distributed sliders) combined with precision rack-and-pinion or ball screw transmission and high-performance servo motors. With the addition of grating or magnetic rulers for real-time feedback, repeat positioning accuracy reaches ±0.03mm–±0.05mm—far exceeding the typical tolerance requirements of large-scale steel structure cutting (±0.5mm).

4. Integrated Bevel Cutting

Many models feature automatic bevel cutting functions, capable of processing V, X, and Y bevels within ±45° while cutting. This reduces workpiece transfers and boosts overall production efficiency by 50%–80%.

5. Intelligent Parameter Matching

Equipped with a professional CNC control system, the machine automatically selects optimal cutting parameters (laser power, cutting speed, auxiliary gas pressure) based on material type (carbon steel, stainless steel, aluminum alloy), thickness (2mm–70mm), and geometry (lines, curves, complex holes). This eliminates repetitive manual adjustments, enabling even beginners to achieve “one-click, high-quality cutting.”

6. Efficient Dust Removal & Purification

An integrated fume extraction system works in sync with the cutting head, channeling smoke and dust directly into a filtration system for compliant discharge. With a dust collection rate above 90%, it protects core components (rails, optics) from contamination while improving workshop air quality and meeting environmental regulations.
