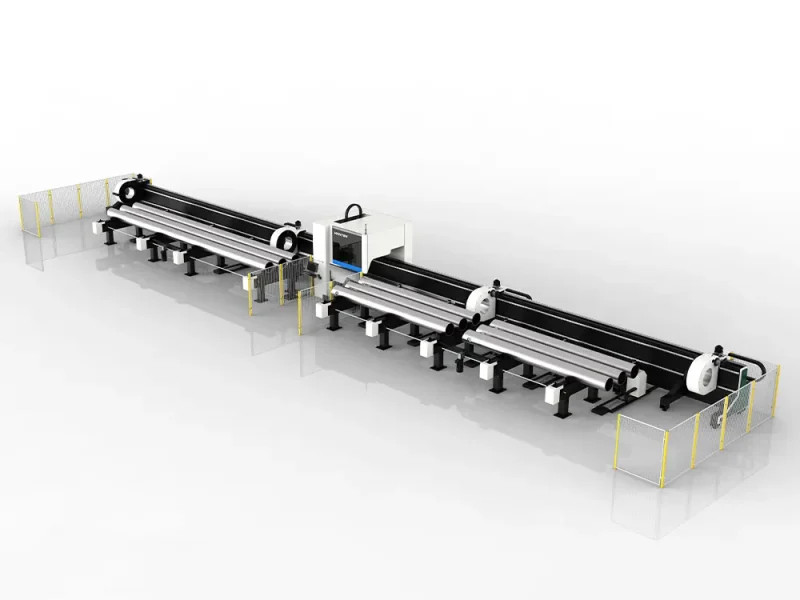

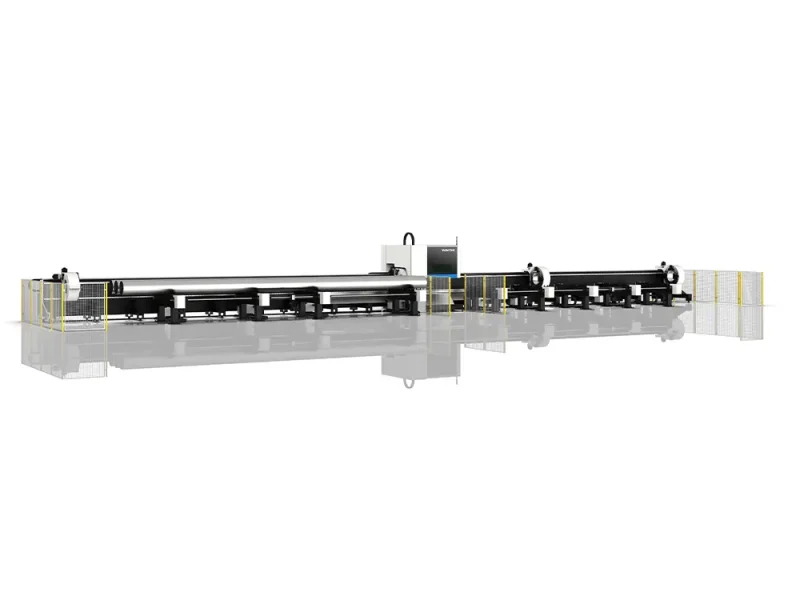

ultra-heavy four-chuck tube laser cutting machine

ultra-heavy four-chuck laser tube cutting machine

Ultra-heavy Four Chuck Metal Tube Laser Cutting Machine for Sale

The four-chuck metal tube laser cutting machine can support cutting various metal tubes from 40mm to 700mm. It has a segmented side-mounted bed structure, a front clamp mobile design, and zero tail material, which greatly improves material utilization and reduces costs. Ideal for industries like engineering, heavy machinery, and construction machinery, etc.

Brand: WINTEK Laser
Model: WT12050T
Category: Tube Laser Cutting Machine
Laser power: 3000W-20000W
Material: Stainless Steel, Carbon Steel, Aluminum, Copper, Galvanised or other Metals.

Send Inquiry

Description

Tube Laser Cutting Video On Youtube

▍Metal Tube Laser Cutting Machine Description

Wintek four-chuck metal tube laser cutting machine is specially designed for long parts processing, achieving no tailing, high efficiency and high stability processing effect. It is widely used in aerospace, automobile manufacturing, energy pipelines, mechanical processing and other fields.

Compared with the three-chuck machines, the four-chuck pipe cutter can realize the loading and processing of the next pipe on the loading side while unloading the workpiece, greatly improving production efficiency. The four-chuck structure can realize four chucks to clamp and cut at the same time, and there is no length limit for tailing processing, thus realizing real zero tailing processing under all working conditions!

The four-chuck tube laser cutting machine does not require manual intervention during the whole process of operation. The last two chucks can move freely to carry the finished products, ensuring that unloading is safe and avoiding the risk of personal injury.

▍Metal Tube Laser Cutting Machine 1KW-12KW Technical Parameters

The tube laser cutting machine is engineered for high-precision and efficient processing of various metal tubes. It offers advanced features to meet the demands of modern industrial applications, ensuring exceptional performance and accuracy. The following is an introduction to the parameters of the fiber laser tube cutting machine:

Model	WT12055T	WT12070T
Max. Processing Tube Length	12500mm	12500mm
Cutting Diameter	20-550mm	20-730mm
Maximum Tube Weight	3000kg	3300kg
Shortest Remaining Material	Zero tails	Zero tails
Positioning Accuracy	±0.15mm/m	±0.15mm/m
Repositioning Accuracy	±0.15mm/m	±0.15mm/m
Max. Chuck Rotating Speed	30r/min	27r/min
Y Axis Maximum Speed	50m/min	45m/min
X Axis Maximum Acceleration	0.3G	0.3G
Dimensions	3200084903670mm	3200085004200mm
Laser Power Range	1000W-12000W	1000W-12000W
Supported Materials	Carbon Steel, Stainless Steel, Aluminum	Carbon Steel, Stainless Steel, Aluminum
Operating Voltage	380V/50Hz	380V/50Hz

▍Metal Tube Laser Cutting Machine Sample

steel tube fiber laser cutting machine sample

tube fiber laser cutting machines sample

wintek fiber tube cutting machine sample

▍Metal Tube Laser Cutting Machine Configuration

tube laser cutting machine segmented side-mounted bed

Segmented Side-Mounted Bed Structure

The segmented side-mounted bed features high load-bearing capacity and strong stability, making transportation, loading, and unloading more convenient. With coaxial processing, it ensures high cutting precision and smooth operation.

Full-Length Pipe Processing

Supports 12m full-length pipe loading and cutting, eliminating the need for secondary processing of long pipes, and ensuring high efficiency and increased productivity.

tube laser cutting machine 12m full length pipe cutting

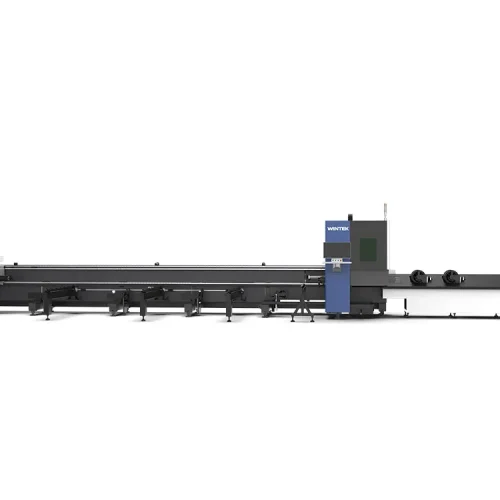

Single-Pipe Loading and Unloading Device

The single-pipe loading and unloading device enables synchronized loading and unloading, ensuring operator safety during the unloading process while significantly enhancing production efficiency.

Multi-Pipe Loading and Unloading Device

An optional multi-pipe loading and unloading unit ensures high efficiency, smooth, and impact-free material handling, supporting multiple pipe and profile types.

Tube Laser Cutting Machine - Other Core Components

Static Precision High-Speed Cutting

four-chuck design of tube laser cutting machine

Heavy-Duty Four-Chuck Design

tube laser cutting machine four-chuck processing mode

“2+2” Processing Mode

Automatic Pipe End Detection System

▍Metal Tube Laser Cutting Machine Benefits

1. Enhanced Clamping Stability: The four-chuck structure provides simultaneous clamping at both ends of the pipe, ensuring stable support and improved cutting precision. This minimizes material movement, making it especially suitable for long or irregularly shaped pipes.

2. Reduced Material Waste: Unlike traditional chucks requiring longer pipe tails for clamping, the dual-end clamping of four-chuck machines effectively shortens tail material, increasing material utilization and reducing production costs.

3. Versatility for Various Materials and Shapes: The four-chuck design accommodates round, square, rectangular, and irregularly shaped pipes, supporting a wide range of sizes and materials such as carbon steel, stainless steel, and aluminum, expanding its application scope.

4. Improved Processing Efficiency: With dual chucks operating simultaneously, clamping speed and processing efficiency are significantly enhanced. The efficient rotation and feeding of materials reduce overall production time, making it ideal for mass production.

5. Optimized Cutting Precision: The synchronized clamping function of four chucks minimizes cutting errors caused by material vibration or misalignment, delivering high-precision results that meet stringent production standards.

6. Seamless Automation Integration: The four-chuck design integrates seamlessly with fully automated loading and unloading systems, enabling unmanned operation. Automatic adjustment and clamping functions further reduce manual intervention, boosting production efficiency and equipment utilization.
