▍Fiber Laser Tube Cutting Machine Description

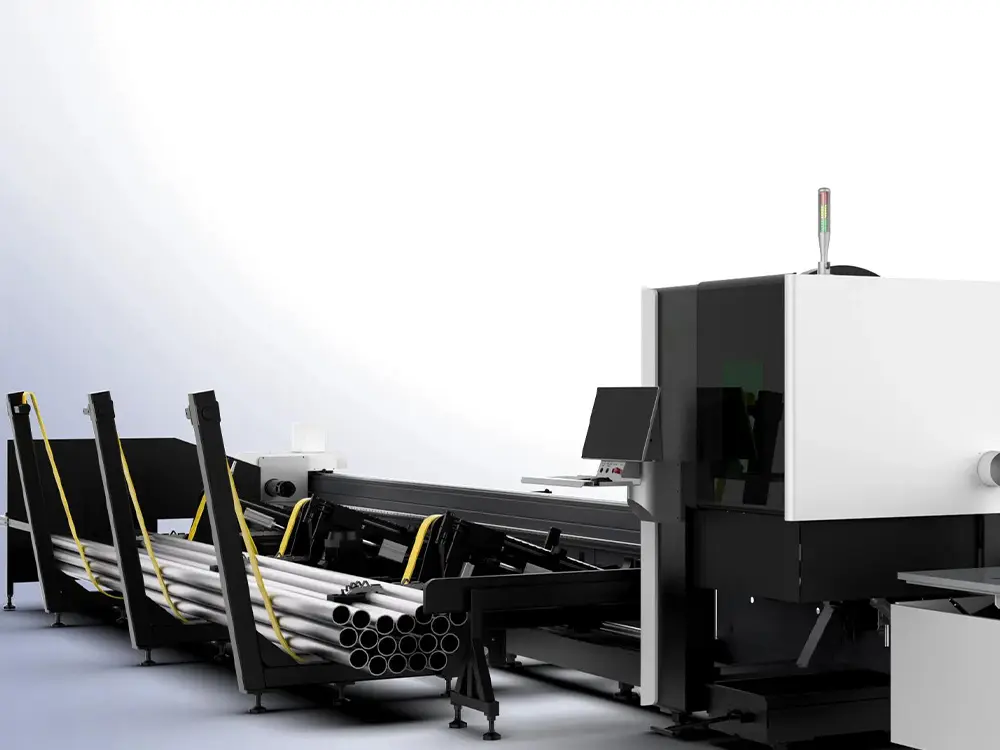

The V12 fully automatic feeding system delivers exceptional efficiency and adaptability for modern tube processing. It is designed to work seamlessly with multiple pipe shapes, including round, square, rectangular, racetrack-shaped, and elliptical pipes, making it suitable for a wide variety of manufacturing tasks. The system supports round pipes from 20 to 120 millimeters in diameter and square pipes ranging from 20×20 to 120×120 millimeters, allowing it to meet different production requirements with ease.
The standard feeding length of 8000 millimeters provides reliable support for long pipes and ensures stable, accurate material delivery throughout the cutting process. Its large 1.5T hopper capacity accommodates a substantial quantity of pipes at once, greatly reducing the need for frequent manual loading and maintaining continuous workflow during production.
One of the most impressive advantages of the V12 system is its rapid 20-second feeding cycle. This fast and efficient loading capability significantly shortens preparation time, increases production throughput, and helps factories maintain smooth, uninterrupted operations even under high-demand conditions.
▍Fiber Laser Tube Cutting Machine 1KW-3KW Technical Parameters
The tube laser cutting machine is engineered for high-precision and efficient processing of various metal tubes. It offers advanced features to meet the demands of modern industrial applications, ensuring exceptional performance and accuracy. The following is an introduction to the parameters of the fiber laser tube cutting machine:
| Items | Parameter | WT6012 | |
| Basic parameter | Tube cross-sectional shape | Round, square, rectangular, oval, rounded rectangular, angle steel, channel steel and other tubes | |
| Tube size range | Round tube φ8*8-120*120mm | Square tube φ8*8-120*120mm | ||
| Max. processing tube length | 6500mm | ||
| Maximum tube weight | 100kg | ||
| Shortest remaining material | 45mm | ||
| Performance | Positioning accuracy | ±0.05mm/m | |
| Repositioning accuracy | ±0.03mm/m | ||
| Max. Chuck rotating speed | 200r/min | ||
| Y axis maximum speed | 130m/min | ||
| X maximum acceleration | 2.0G | ||
▍High-Speed Fiber Laser Tube Cutting Machine Sample
▍Fiber Laser Tube Cutting Machine Configuration

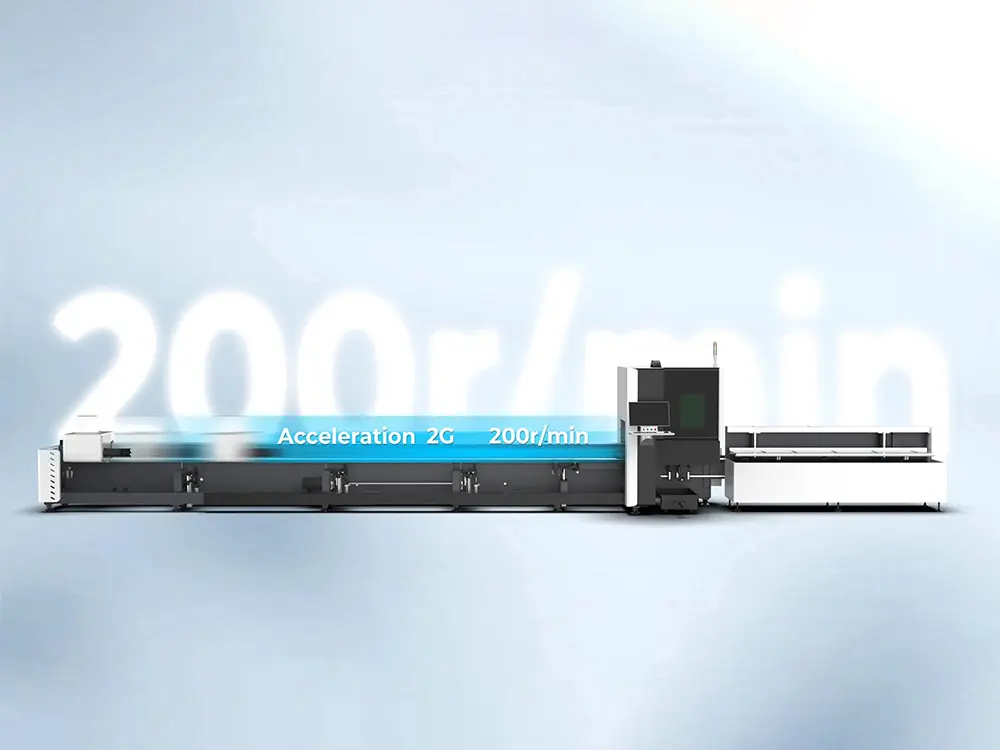

Ultra-Fast Cutting, Elevated Efficiency
Equipped with acceleration up to 2G and a high-speed chuck running at 200 r/min, the machine delivers exceptional dynamic responsiveness for ultra-fast tube cutting. It significantly shortens processing cycles, boosts production capacity, and empowers customers to deliver faster.
Intelligent Support, Precise Stability
A dual support system, comprising adaptive and concave roller supports, effectively suppresses tube movement during high-speed operation. The stable cutting process ensures high-precision finished parts.
Dynamic Support, Precision Guaranteed
From loading to unloading, the supports provides continuous, dynamic stability for long tubes. This ensures consistent cutting accuracy throughout the entire process, meeting the demands of high-standard applications.
Minimal Tailing, Maximum Yield
With a front-shift chuck design, tailing length is precisely controlled, minimizing material waste. This not only extends the chuck’s lifespan by reducing wear but also improves overall production efficiency.
Tube Laser Cutting Machine - Other Core Components
Fiber Laser Source
Cutting Head
Intelligent Operating System
Taiwan Hiwin Rails & YYC Gears
▍High-Speed Fiber Laser Tube Cutting Machine Benefits
The high-speed fiber laser tube cutting machine delivers significant advantages for manufacturers seeking higher efficiency and precision. Its advanced laser system enables rapid cutting speeds while maintaining exceptional accuracy, producing clean edges, smooth surfaces, and consistent results across a wide range of tube sizes and shapes. Even during high-speed operation, the machine ensures minimal thermal impact, preserving material integrity and reducing the need for secondary processing.
Beyond cutting quality, the machine enhances overall production workflow. Stable performance during long hours of continuous operation makes it ideal for demanding industrial environments. Automated functions such as smart loading, automatic positioning, and real-time monitoring reduce manual intervention and streamline the entire cutting process, improving productivity and lowering labor costs.
The benefits extend further with reliable structural design and low maintenance requirements. Combining speed, precision, and operational stability, the high-speed fiber laser tube cutting machine is an excellent choice for factories aiming to upgrade efficiency and achieve higher-quality tube processing results.
Contact us now to learn more about our advanced high-speed fiber laser tube cutting machines. Complete the form to receive a customized quote.
