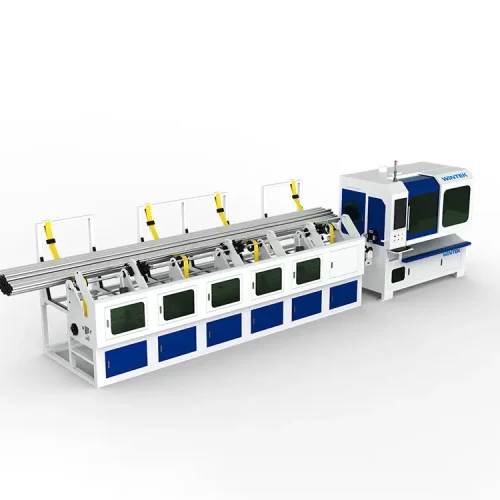

▍Small Tube Laser Cutting Machine Description

The Small Tube Laser Cutting Machine is a compact yet powerful solution designed for cutting metal tubes with high precision. It is capable of processing round, square, and rectangular pipes, making it suitable for a wide range of manufacturing needs.

Equipped with an advanced fiber laser source and professional clamping system, the machine ensures stable operation, smooth cutting edges, and consistent accuracy. Its intelligent control system simplifies operation, even for beginners, while maintaining high production efficiency.

With a space-saving structure and low energy consumption, this model is ideal for small workshops and customized metal fabrication projects. It offers excellent performance for industries such as furniture, fitness equipment, and hardware manufacturing.

▍Small Tube Laser Cutting Machine 1KW-3KW Technical Parameters

The tube laser cutting machine is engineered for high-precision and efficient processing of various metal tubes. It offers advanced features to meet the demands of modern industrial applications, ensuring exceptional performance and accuracy. The following is an introduction to the parameters of the fiber laser tube cutting machine:

Sub Item	WTK-T90	WTK-T120
Tube Cross-Sectional Shape	Round, square, rectangular, oval	Round, square, rectangular, oval
Tube Size Range	Φ15–80mm	Φ15–100mm
Requirements for Tubes	Diameter＜φ50mm Thickness≥0.8mm Diameter≥φ50mm Wall thickness≥2.5% of tube diameter	Diameter＜φ50mm Thickness≥0.8mm Diameter≥φ50mm Wall thickness≥2.5% of tube diameter
Pipe Loading Range	5000–7000mm	5000–7000mm
Maximum Tube Weight	75kg	100kg
Shortest Remaining Material	50mm	50mm
Bin Bearing	1.5T	1.5T
Maximum Cutting Length of Pipe	2000mm	2000mm
Dimensions	8200×1900×2100mm	8200×1900×2100mm
Overall Weight	1200kg	1200kg
Positioning Accuracy	±0.05mm/m	±0.05mm/m
Repositioning Accuracy	±0.03mm/m	±0.03mm/m
Max. Chuck Rotating Speed	180r/min	180r/min
Y Axis Maximum Speed	120m/min	120m/min
Y Axis Maximum Acceleration	1.5G	1.5G

▍Small Tube Laser Cutting Machine Sample

▍Small Tube Laser Cutting Machine Configuration

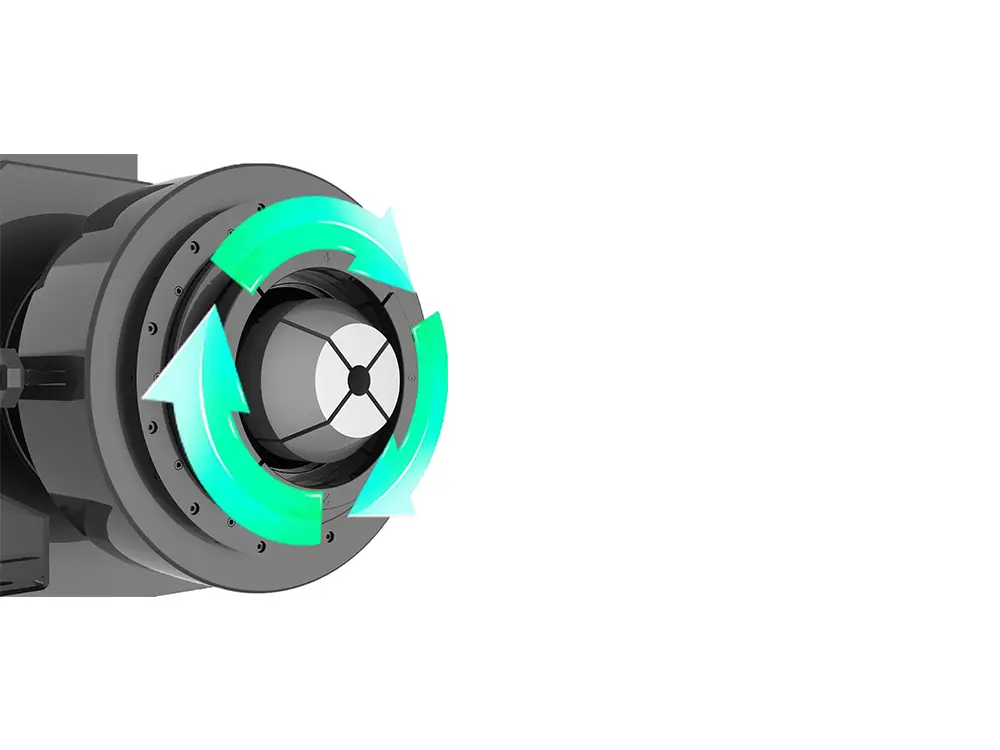

Equal Pipe Diameter Mold Chuck

Standard small pipe exclusive full pneumatic chuck.
Speed can reach 180r/min.
Strong clamping force, quick response time.

Ultra-short Tailings

The shortest cutting tailings can be within 80mm.
Maximize material utilization.
Reduce production costs.

Fully Automatic Feeding System

Intelligent feeding method.
Supports batch cutting of small pipes.
Fully release manpower and improve production efficiency.

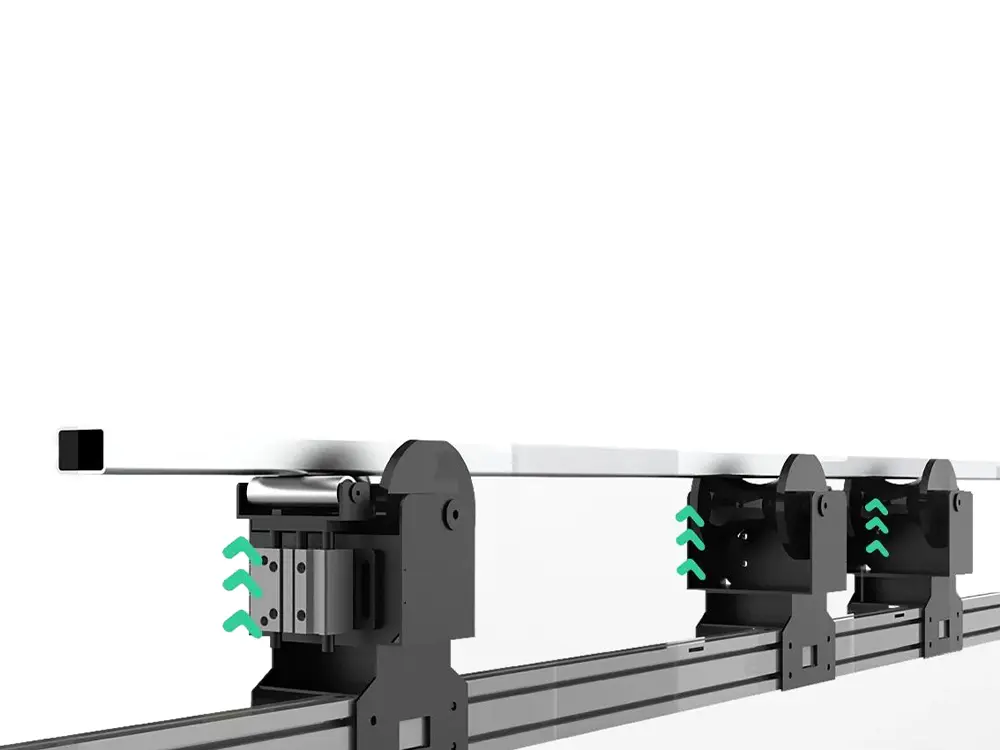

Equipped with a Follow-up Support Device

Equipped with follow-up material support.
Real-time adjustment of lifting height.
Prevent pipe swinging and sagging.
At the same time ensure cutting accuracy.

1. High Precision and Clean Cutting: Delivers accurate cuts with smooth, burr-free edges, ensuring perfect results for round, square, and rectangular tubes.

2. Compact and Space-Saving Design: Its small footprint makes it ideal for workshops with limited space while maintaining strong cutting capacity.

3. Stable Performance and Easy Operation: Equipped with a high-quality fiber laser source and intelligent control system, it offers consistent performance and user-friendly operation.

4. Versatile Applications: Perfect for producing furniture, gym equipment, handrails, and other metal components across various industries.

5. Low Maintenance and Energy Efficient: Requires minimal upkeep and consumes less power, reducing long-term operating costs.

6. Customizable Configuration: Supports customization of laser power, chuck system, and software to meet different production needs.
